t-Rex 3206 I-65-86-L36 S2 (long version, focus torque) at 24 VDC
| Quantity | Unit price |
|---|---|
| To 4 |
€305.00*
|
| To 9 |
€284.00*
|
| To 19 |
€264.00*
|
| From 20 |
€244.00*
|
Available, delivery time: 1-3 days
Product information "t-Rex 3206 I-65-86-L36 S2 (long version, focus torque) at 24 VDC"

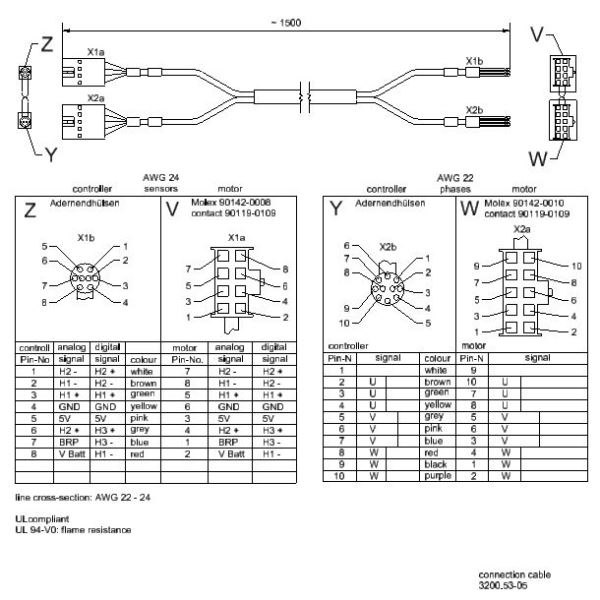

This 14-pole brushless DC motor (BLDC) sets new standards in efficiency and torque. Equipped with high-quality neodymium permanent magnets and three integrated digital Hall sensors, it ensures precise rotor position detection – ideal for dynamic and accurate applications. Electrical connection is via a convenient plug-in system, minimizing installation effort.
The design with a continuous hollow shaft allows for bidirectional power transmission – perfect for space-constrained or symmetrical drive configurations. An external power electronics unit is required for operation.
Special Features
- Maximum torque: Specifically designed for high torque demands with a compact form factor
- Outstanding power density: Up to three times the output compared to standard motors of the same size
- Overload-resistant: Mechanically and thermally engineered for demanding environments
- Direct drive & generator mode: Ideal for gearless constructions or as a high-efficiency generator
-
Versatile applications: Perfectly suited for automation, robotics, mobile systems, and industrial conveying technology
Technical Data
|

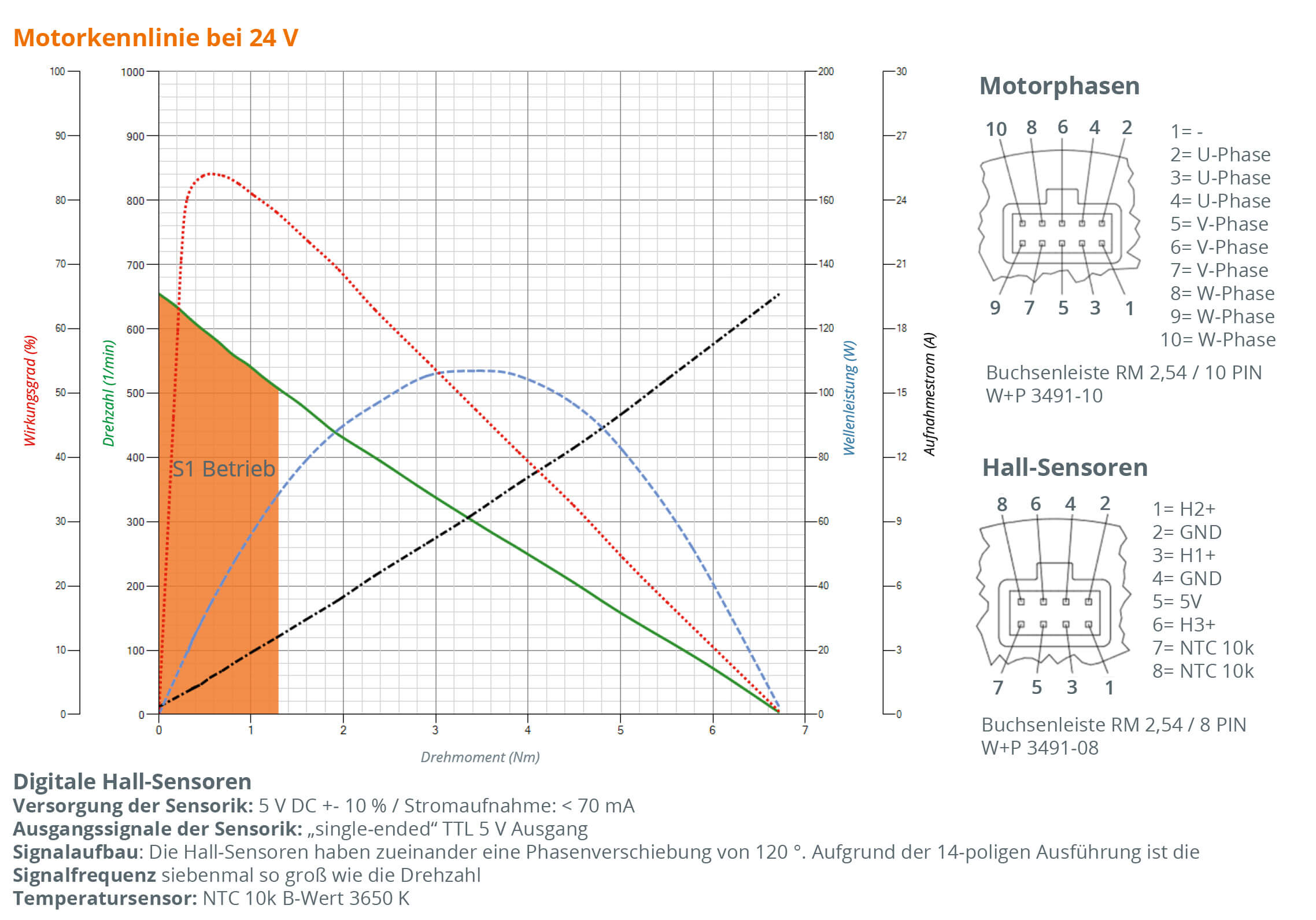

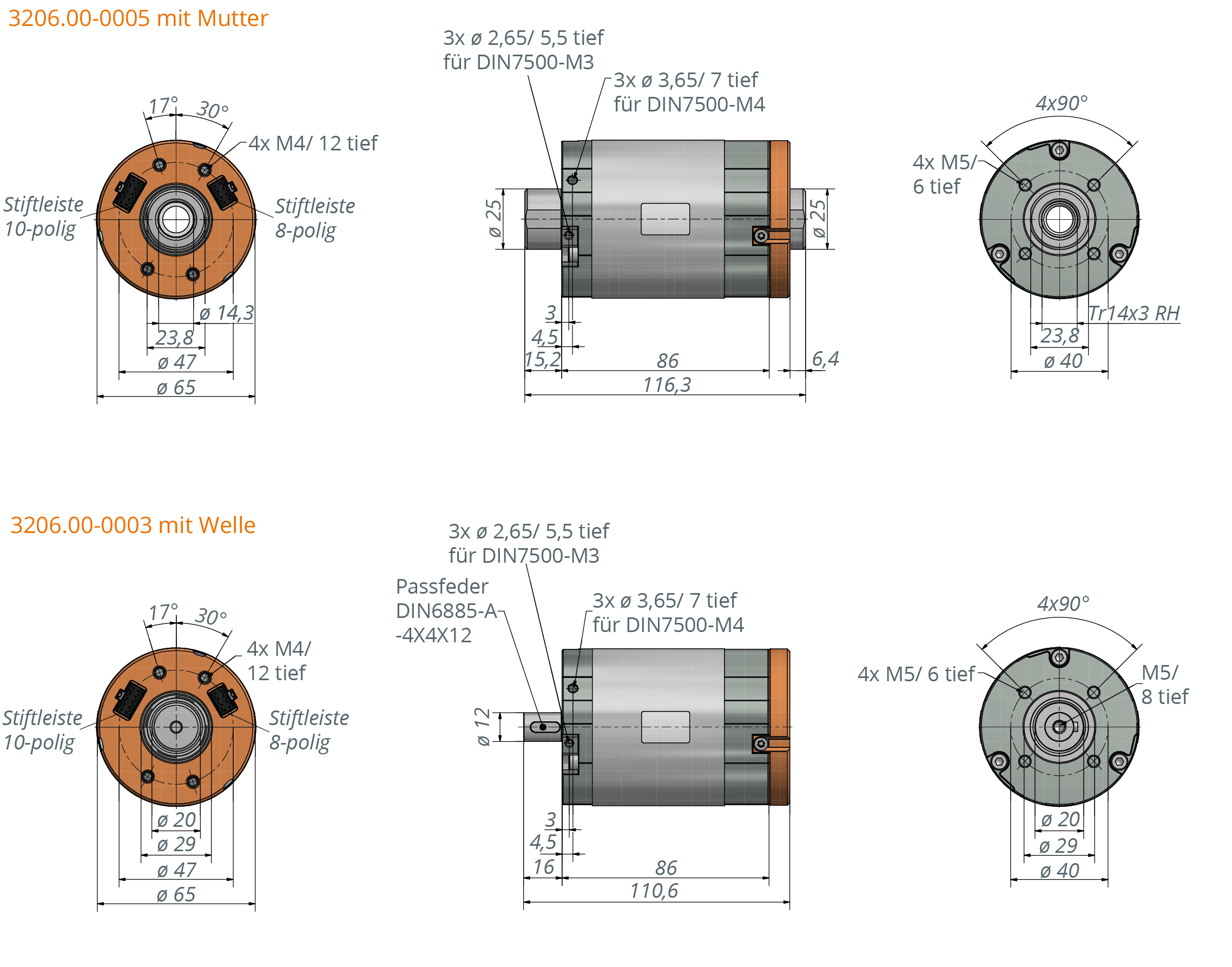

t-Rex 3206 I-65-86 L36 S2 DH
|
3206.00-0005 / 3206.00-0003 | ||
|
Rated voltage
|
24 VDC
|
36 VDC
|
48 VDC
|
|
Rated current
|
3.6 A
|
3.6 A
|
3.4 A
|
|
Rated torque
|
1.3 Nm
|
1.25 Nm
|
1.2 Nm
|
|
Rated speed
|
507 rpm
|
817 rpm
|
1123 rpm
|
|
Shaft power (output)
|
68 W
|
107 W
|
140 W
|
|
Max. efficiency
|
84 %
|
86 %
|
87 %
|
|
Idle speed
|
655 rpm
|
970 rpm
|
1306 rpm
|
|
No-load current
|
0.3 A
|
0.3 A
|
0.35 A
|
|
Stall torque
|
6.7 Nm
|
8.6 Nm
|
8.6 Nm
|
|
Starting current at idle speed
|
20 A
|
25 A
|
24 A
|
| Torque constant | 0.335 Nm/A | 0.344 Nm/A | 0.358 Nm/A |
| Speed constant | 27 rpm/V | 27 rpm/V | 27 rpm/V |
| Motor parameters | |
|
Terminal resistance (phase to phase)
|
121 mOhm
|
|
Terminal inductance (phase to phase)
|
916 µH
|
|
Rotor inertia
|
104 kg* mm²
|
|
Number of poles
| 14 |
|
Interconnection of the motor
| Star |
|
Number of coils per phase
| 2 |
|
Interconnection of coils
| 2 Series |
|
Direction of rotation
|
bidirectional
|
Note:
Max. ambient temperature = 40 °C, controller-specific
At the nominal point (TU = 20°C), controller-specific
