5187 Hand cranks inside 6ktSW 7
SW7 hexagon socket hand cranks: Modern design, precise adjustment in variable projections.
| Quantity | Unit price |
|---|---|
| To 4 |
€35.64*
|
| To 9 |
€33.26*
|
| To 19 |
€30.88*
|
| From 20 |
€28.51*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
27
Product number:
5187.00-V02A200
Weight:
0.15 kg
Product information "5187 Hand cranks inside 6ktSW 7"

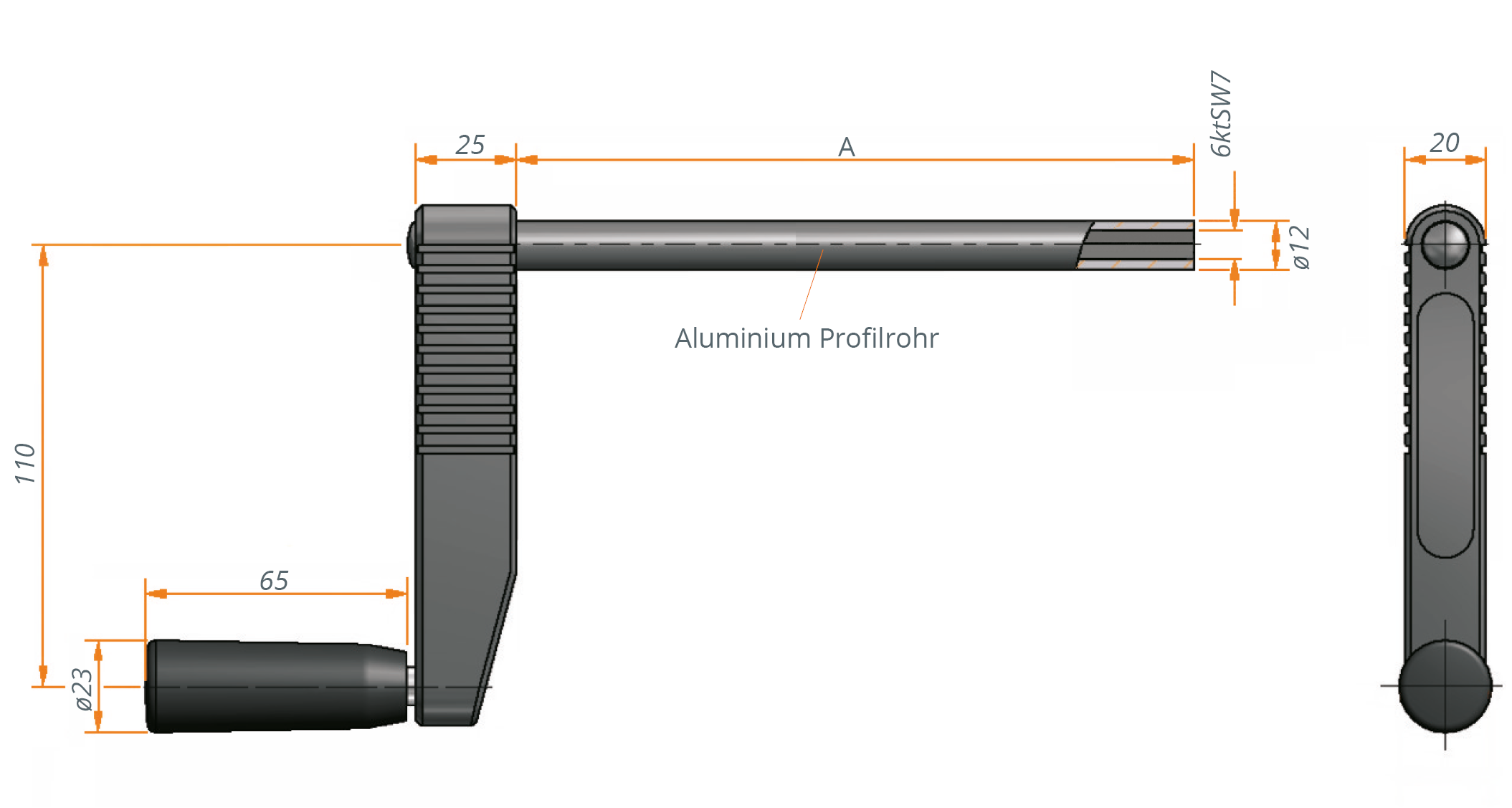

Inside hexagon 7mm l Aluminium profile tube l Axle length 200mm or 245mm l Glass-fibre reinforced plastic l Projection 110mm
Properties
Our hand cranks in the design inside 6kt SW7 are available in different dimensions regarding throat depth. The hand cranks are characterized by their simple and at the same time modern design and are suitable for an easy and exact adjustment.
In addition, our hand cranks are suitable for the profile bars, bevel gears and worm gears offered in our store.
Technical Specifications
| Item number | 5187.00-V02A200 | 5187.00-V02A245 |
| Execution | inside hexagon SW7 | inside hexagon SW7 |
| Axis length | 200mm | 245mm |
| Outreach | 110mm | 110mm |
| Material crank handle | glass fiber reinforced plastic | glass fiber reinforced plastic |
| Material | Aluminum profile tube | Aluminum profile tube |
| Color crank body & handle | black | black |
