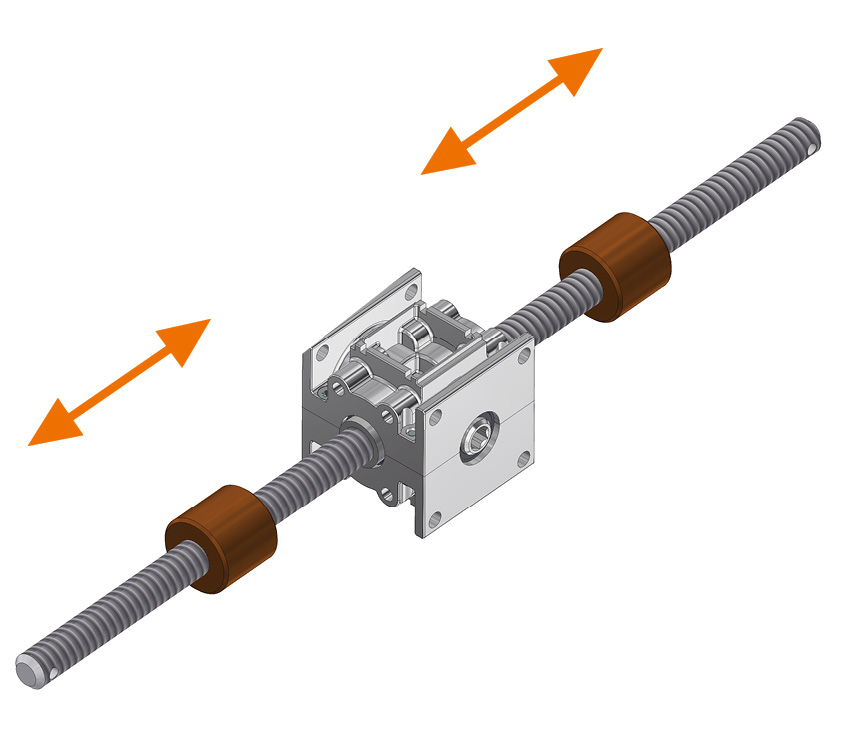

Bevel gear 3872
10 Nm bevel gearbox with 1:1 ratio: maintenance-free, special gearing for smooth running, customisable drive characteristics.
| Quantity | Unit price |
|---|---|
| To 4 |
€108.78*
|
| To 9 |
€101.52*
|
| To 19 |
€94.27*
|
| From 20 |
€87.02*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
13
Product number:
3872.00-0062
Weight:
0.79 kg
Product information "Bevel gear 3872"
Properties

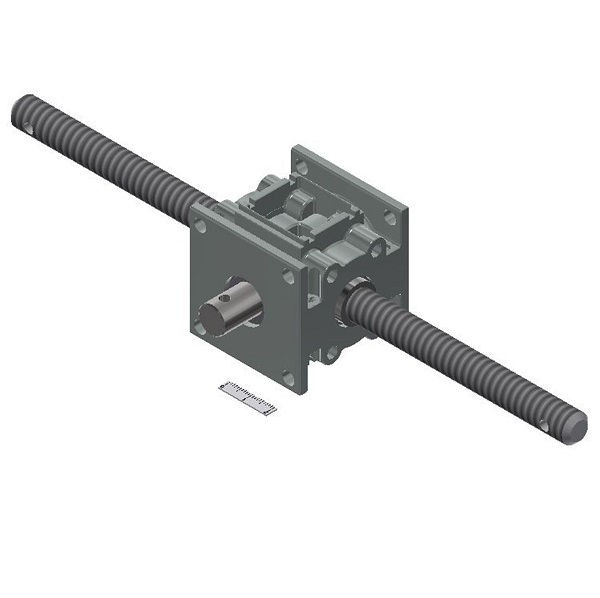

The bevel gearbox with a max. torque of 10 Nm and a gear ratio of 1:1 is also known as a reversing gearbox. The gearbox has a special toothing, which is responsible for the smooth running of the gearbox. At the same time, the bevel gearbox is characterized by its hardened steel bevel gears with ball bearings and its zinc die-cast housing. The gearbox is maintenance-free.
The gearboxes are selectable in the characteristics of input, output and length of the input.
The gearboxes are selectable in the characteristics of input, output and length of the input.

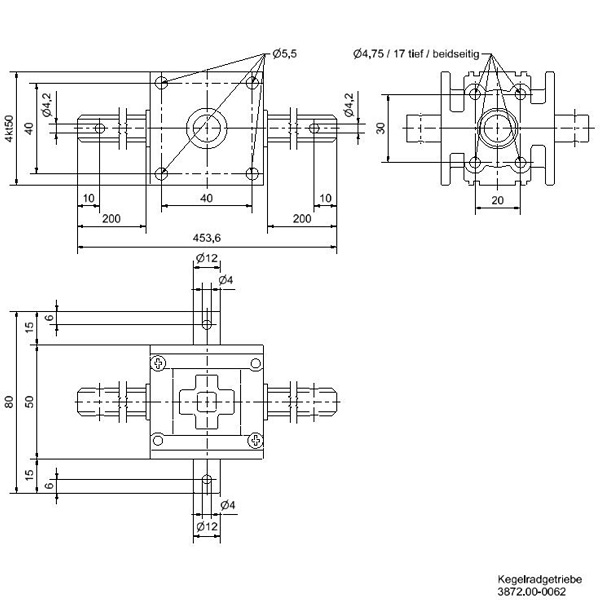

| 3872.00-0062 | 3872.00-0045 | 3872.00-0039 | 3872.00-0028 | |
| Output | 2x Spindle TR 12x3 RH | 2x Spindle TR 12x3 RH | 2x Spindle TR 12x3 RH | 2x Wave Ø 12mm |
| Drive | Continuous shaft Ø 12mm | Continuous shaft Ø 12mm | inside 6kt SW9 | Continuous shaft Ø 12mm |
| Output length | 200mm | 350mm | 200mm | 13,2mm |
Special features
- Maintenance-free
- Hardened, bearing seated steel gear cogs
- Housing made of zinc die-casting
- Lifetime 20,000 load changes: at 10 Nm, 110 rpm, with the duty cycle 30 s ON 240 s OFF and at + 25 °C
Technical data
| Speed range till: | 150 rpm |
| Max. drive torque: | 10 Nm |
| Ratio: | 1 : 1 |
| Dimensions: | 50 x 50 x 50mm |
| Self-locking: | no |
| On/Off duration: | 20% (at 5Min.) |
| Allowable operating temperature: | -20°C - 40°C |
| Housing: | zinc die-casting |
| Special features: | hardened, bearing seated steel gear cogs |
Application bevel gearbox
The bevel gearbox is ideal for use as a transfer gearbox or as an attachment gearbox for electric motors. The application is mostly for blinds and actuators in special machine construction.
