Bevel gear with spindle unit 3039
Universal bevel gearboxes with spindle unit: choice of stroke, installation dimension, spindle type. Maintenance-free, 1:1 ratio.
| Quantity | Unit price |
|---|---|
| To 4 |
€38.97*
|
| To 9 |
€36.41*
|
| To 19 |
€33.75*
|
| From 20 |
€31.20*
|
Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
17
Product number:
3039.00-V01E304H200
Weight:
0.41 kg
Product information "Bevel gear with spindle unit 3039"
Special features
- Maintenance-free
- Ratio 1:1
- Drive torque on gear head depending onspindle pitch: max. 4 Nm
- Housing made of glass fiber reinforcedplastic
- Hardened steel bevel wheels with robust,reinforced toothing
- Suitable for manual use as well as for theelectromotive drive
Technical notes
- The lifting units must be protected againstlateral forces by a separate guide system.
- Attention: The spindle systems with aspindle pitch > 3mm may not be self-locking. Check the self-locking effectin the application.
- The lifting unit is only pressure loadable.
- Incorrect dimensioning of the guide systemcan damage the lifting unit: Please note the design and safety instructions forspindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions
- Installation instructions: use at least 2M4 screws when fastening. Using bore holes ø 4.1 mm (2x) when doing so,preferable the lifting unit should be supported above on the top side.
| Model | 3039.00-V01EXXXHXXX | 3039.00-V02EXXXHXXX |
| Ratio | 1:1 | 1:1 |
| Input | hex 6mm | hex 6mm |
| Type of spindle | Tr14x3 RH | SG14x16P4 RH |
| Travel path | 3 mm/rotation | 16 mm/rotation |
| Traverse speed* | 7,5 mm/s | 40 mm/s |
| Max. stroke | retracted length -99 mm | retracted length -99 mm |
| Max. lifting force | 1200 N | 800 N |
| Required drive torque | 1,7 Nm | 3,5 Nm |
*in conjunction with actuator 3130.00 and LogicData control unit Compact-

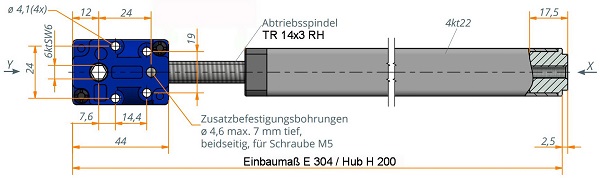

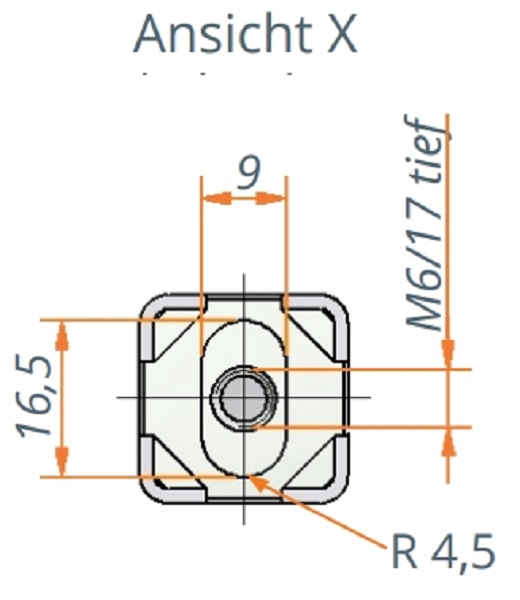

Application bevel gear unit with spindle unit
Universal lifting unit with bevel gear head for linear drive solutions.
Possible applications include height-adjustable tables, various adjustment functions for furniture items, and any type of linear adjustment in residential, mobile home or industrial applications. Simple screw fastenings and a continuous hexagon allow for an easy system design and uncomplicated assembly.
