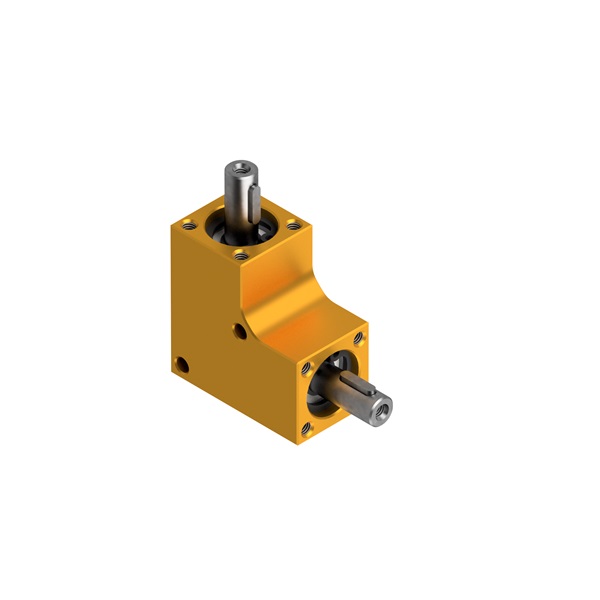

Bevel gearbox 0,1 - 4 Nm 1:1
Bevel gear drive with 7 sizes: Ideal for versatile angular gearbox applications. Compact, robust, and efficient in power transmission.
€95.48*
% €119.00* (19.76% saved)Available, delivery time: 1-3 days
Please note that we are in the period from 23.12.2024 to 06.01.2025 on a business holiday and can only process incoming orders within this period after our return. Thank you for your comprehension.
Stock:
18
Product number:
2001.00-0001
Weight:
0.04 kg
Product information "Bevel gearbox 0,1 - 4 Nm 1:1"
7 sizes l Max. torque 0.1 Nm - 4 Nm l Gear ratio 1:1 l Anodised aluminium housing l Maintenance-free l Low noise l Hardened steel bevel gears
Features angular gear Ket-Bee 200X
A bevel gearbox family consisting of 7 sizes for versatile use as an angular gearbox. The gearbox is characterized by a compact design with maximum torque, sturdiness and smooth power transmission. The uncomplicated mounting is made possible by a simple screw fixing.
Special features
- Maintenance-free
- Steel bevel wheels, case-hardened
- Aluminium housing, anodized (orange or silver)
- Silent running
- Ratio 1:1
- Permitted operating temp. -20°C to +60°C
- Backlash at drive shaft 3° ± 1°
- Duty cycle 20 % at 5 min (1 min ON, 4 min OFF)
- Lifetime of 1000 hours with:
- full load and
- input speed of 500 rpm and
- duty cycle 20% with 5 min
Technical data
Type | Speed n in rpm | Max. torque M in Nm |
Radial and axial load FR in N FN in N
|
Part weight in kg | Item.-Nr. | |
Type A | 100/500/1000 | 0.35/0.1/0.05 | 60 | 60 | 0.052 | 2001.00-0001 |
Type B | 100/500/1000 | 0.75/0.3/0.15 | 100 | 100 | 0.073 | 2002.00-0001 |
Type C | 100/500/1000 | 2.5/1.0/0.5 | 120 | 120 | 0.142 | 2003.00-0001 |
Type D | 100/500/1000 | 4.0/1.5/0.75 | 140 | 140 | 0.189 | 2004.00-0001 |
Type E | 100/500/1000 | 5.0/2.0/1.0 | 240 | 240 | 0.268 | 2005.00-0001 |
Type F | 100/500/1000 | 8.0/3.0/1.5 | 550 | 550 | 0.330 | 2006.00-0001 |
Type G | 100/500/1000 | 10.0/4.0/2.0 | 550 | 550 | 0.395 | 2007.00-0001 |
Type |

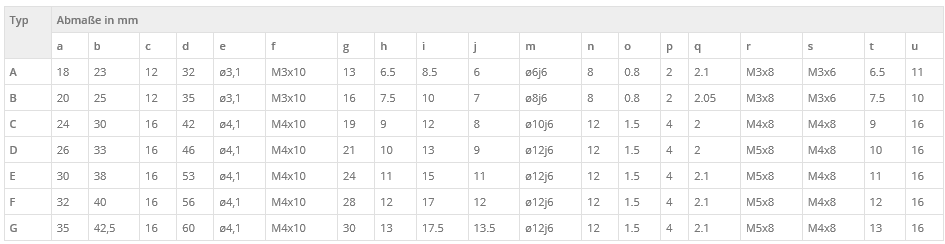

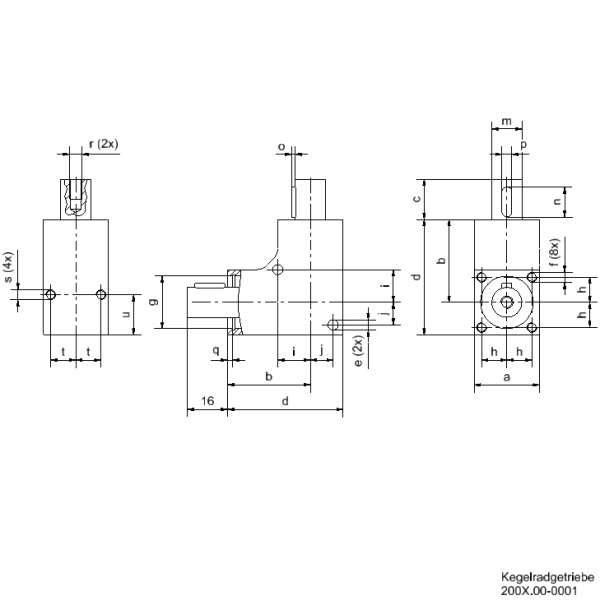

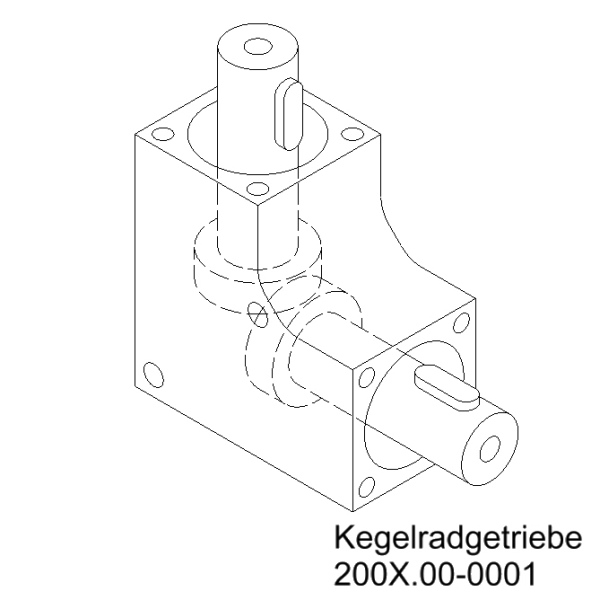

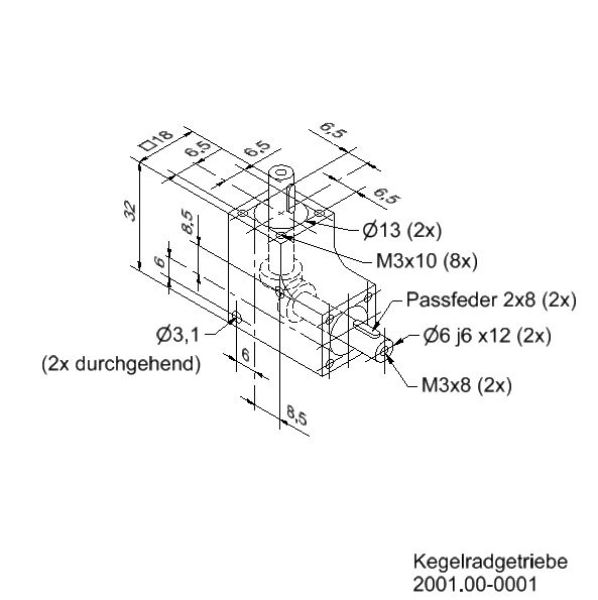

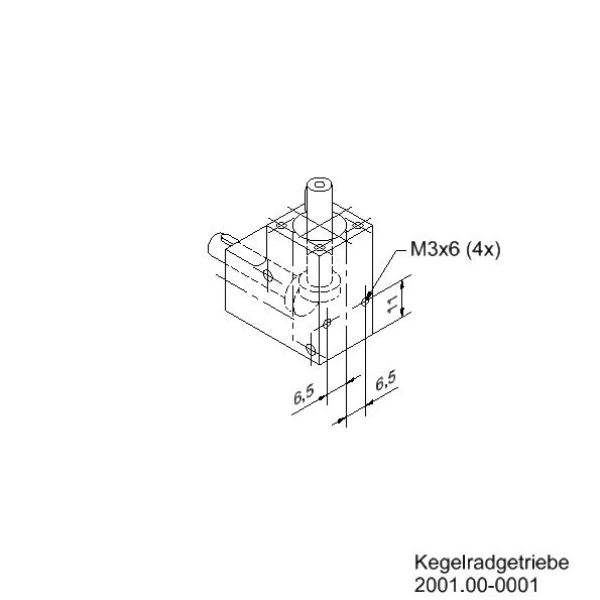

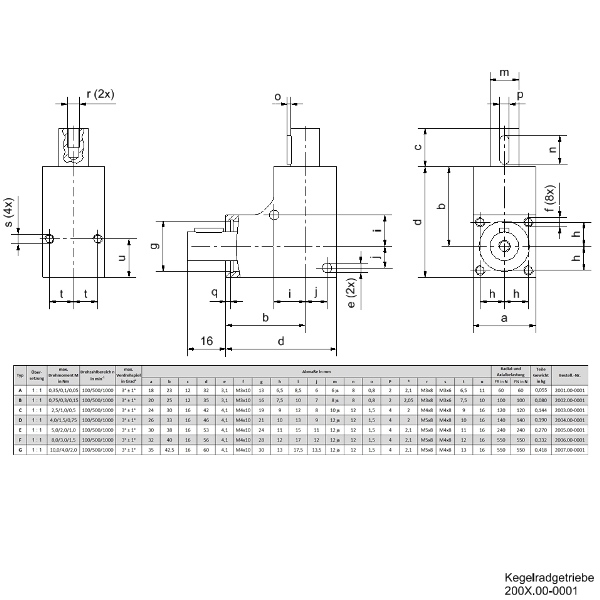

Dimensions in mm
|
||||||||||||||||||
a | b | c | d | e | f | g | h | i | j | m | n | o | p | q | r | s | t | u | |
A | 18 | 23 | 12 | 32 | ø3.1 | M3x10 | 13 | 6.5 | 8.5 | 6 | ø6j6 | 8 | 0.8 | 2 | 2.1 | M3x8 | M3x6 | 6.5 | 11 |
B | 20 | 25 | 12 | 35 | ø3.1 | M3x10 | 16 | 7.5 | 10 | 7 | ø8j6 | 8 | 0.8 | 2 | 2.05 | M3x8 | M3x6 | 7.5 | 10 |
C | 24 | 30 | 16 | 42 | ø4.1 | M4x10 | 19 | 9 | 12 | 8 | ø10j6 | 12 | 1.5 | 4 | 2 | M4x8 | M4x8 | 9 | 16 |
D | 26 | 33 | 16 | 46 | ø4.1 | M4x10 | 21 | 10 | 13 | 9 | ø12j6 | 12 | 1.5 | 4 | 2 | M5x8 | M4x8 | 10 | 16 |
E | 30 | 38 | 16 | 53 | ø4.1 | M4x10 | 24 | 11 | 15 | 11 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 11 | 16 |
F | 32 | 40 | 16 | 56 | ø4.1 | M4x10 | 28 | 12 | 17 | 12 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 12 | 16 |
G | 35 | 42,5 | 16 | 60 | ø4.1 | M4x10 | 30 | 13 | 17.5 | 13.5 | ø12j6 | 12 | 1.5 | 4 | 2.1 | M5x8 | M4x8 | 13 | 16 |
Bevel gearbox
A bevel gearbox family consisting of 7 sizes for versatile use as angular gearboxes. The gearboxes are suitable wherever movement and forces have to be transmitted at an angle.
