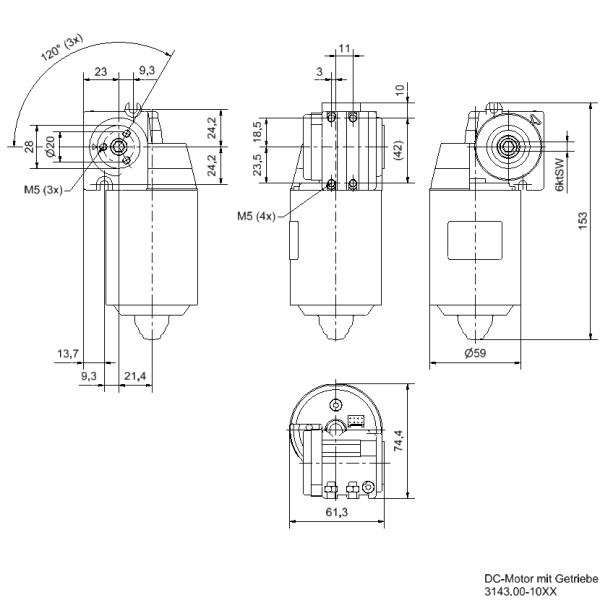

DC-Motor drive 3143
Compact motor drive with hexagon socket, stroke measuring system - selectable 115/230 rpm, ideal for electric motor upgrades.
Stock:
16
Product number:
3143.00-1002
Weight:
0.99 kg
Product information "DC-Motor drive 3143"
Features
Compact motor drive with a continuous hexagon socket and integrated displacement encoder. The geared motor can be ordered with an idle speed of 115 rpm or 230 rpm.
The geared motor serves as a simple upgrade from the manually operated version to the electric motor solution. The motor is supplied with a matching cable.
| Series | 3143.00-1002 | 3143.00-1003 | 3143.00-1006 | 3143.00-1008 |
| Motor operating range | 6 - 30 V | 6 - 30 V | 6 - 30 V | 6 - 30 V |
| Motor Nennbereich | 18 V | 18 V | 18 V | 18 V |
| Motor nominal range | inside 6kt SW6 | inside 6kt SW7 | inside 6kt SW6 | inside 6kt SW7 |
| Gear ratio | 1 gängig | 1 gängig | 2 gängig | 2 gängig |
| Duty cycle | 20% (bei 5 Min.) | 20% (bei 5 Min.) | 20% (bei 5 Min.) | 20% (bei 5 Min.) |
| Sensor/Supply | Hall/ 5 V DC/ 0,3 A | Hall/ 5 V DC/ 0,3 A | Hall/ 5 V DC/ 0,3 A | Hall/ 5 V DC/ 0,3 A |
| Protection class | IP 30 | IP 30 | IP 30 | IP 30 |
| Idle speed | 115 U/min | 115 U/min | 230 U/min | 230 U/min |
| max drive torque | 5 Nm | 5 Nm | 5 Nm | 5 Nm |
| Rated current | 3,3 A bei 5 Nm | 3,3 A bei 5 Nm | 4,2 A bei 2,8 Nm | 4,2 A bei 2,8 Nm |
| Weight | 988 g | 987 g | 982 g | 982 g |
| special features | integrated measuring system | integrated measuring system | integrated measuring system | integrated measuring system |
| Motor cable | Included in delivery | Included in delivery | Included in delivery | Included in delivery |
