Motor drive 3130
| Quantity | Unit price |
|---|---|
| To 4 |
€70.54*
|
| To 9 |
€65.85*
|
| To 19 |
€61.10*
|
| From 20 |
€56.41*
|
Available, delivery time: 1-3 days
Product information "Motor drive 3130"

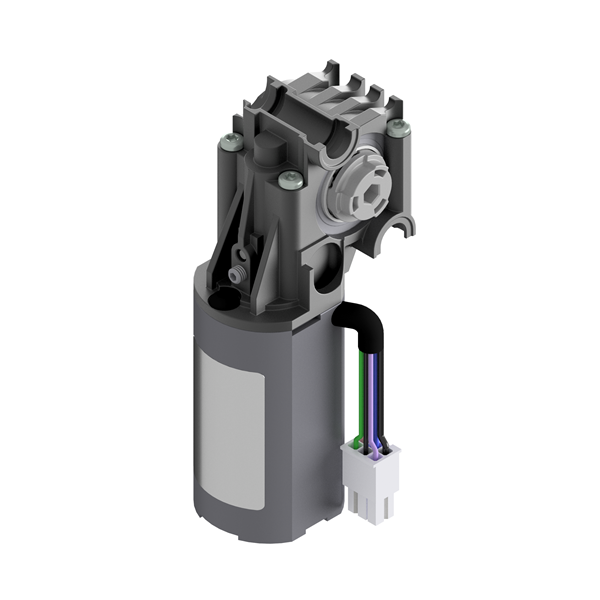

This compact 24V DC motor with worm gear offers optimized noise and vibration reduction thanks to its elastic coupling and vibration-damping mounting elements. Originally designed for ergonomic desk applications, the drive is also widely used in many other areas. The motor is designed and tested for axial compression loads. An AMP connector cable and integrated Hall sensors ensure simple and safe control of the overall system.
You can also find suitable motor cables and spindle units with motor adapters in our store.
Special Features
- Noise- and vibration-reduced design through mechanical decoupling of the spindle system
- Two integrated Hall sensors for detecting rotations and direction of rotation
- Continuous hexagon socket available in SW6 and SW7
- Excellent self-locking properties
- 100 mm motor cable with connector included
- Compatible with most Ketterer spindle systems
Variant Key
The variants differ by hexagon socket size and by mounting options with or without a mounting plate (Variant A or Variant B).
Technical Notes
- The rated torque is designed for a lifetime of 10,000 double strokes.
- With the appropriate control unit, the drive speed is regulated to remain constant across the entire working range.
- Using a control unit with a short-circuit brake allows the holding torque of the drive to be increased.
* In combination with LogicData control box Compact-3
Technical Data
| Model |

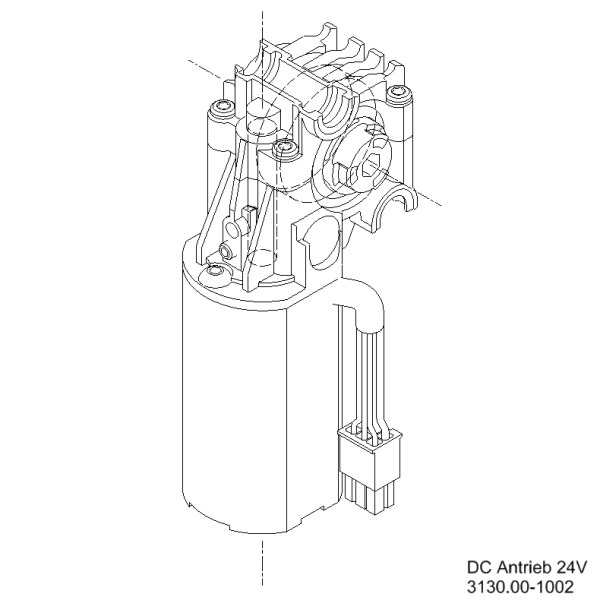

3130.00-1002 Variant B
|
3130.00-1003 Variant B
|
3130.00-2002 Variant A
|
3130.00-2003 Variant A
|
|
Motor
|
DC motor 24 V
|
DC motor 24 V
|
DC motor 24 V
|
DC motor 24 V
|
|
Sensor/Power supply
|
Hall/5 V DC/0.3 A
|
Hall/5 V DC/0.3 A
|
Hall/5 V DC/0.3 A
|
Hall/5 V DC/0.3 A
|
|
Protection class
|
IP30
|
IP30
|
IP30
|
IP30
|
|
Idle running speed
|
120 rpm (24 V)
|
120 rpm (24 V)
|
120 rpm (24 V)
|
120 rpm (24 V)
|
|
Duty cycle idle speed
|
20% (at 5 min.)
|
20% (at 5 min.)
|
20% (at 5 min.)
|
20% (at 5 min.)
|
|
Rated torque*
|
3.5 Nm
|
3.5 Nm
|
3.5 Nm
|
3.5 Nm
|
|
Duty cycle nominal load
|
20 s ON 240 s OFF
|
20 s ON 240 s OFF
|
20 s ON 240 s OFF
|
20 s ON 240 s OFF
|
|
Short term peak torque (<1s)
|
6 Nm
|
6 Nm
|
6 Nm
|
6 Nm
|
|
Input
|
hex 6 mm
|
hex 7 mm
|
hex 6 mm
|
hex 7 mm
|
| Fastening | Without mounting plate | Without mounting plate | With mounting plate | With mounting plate |
*
Load determined for service life of 10,000 double strokes
