Spindle unit with motoradapter 3130.14

Versatile spindle units: 525mm stroke, universally applicable, ideal for height-adjustable tables, furniture & industry. With and without motor attachment.

€48.84*

Available, delivery time: 1-3 days

Please note that we are in the period from 05.08.2024 to 16.08.2024 on a business holiday and can only process incoming orders within this period after our return. Deliveries can therefore only be made after the 16.08.2024. Thank you for your comprehension.
Engine mount
Mounting distance
Spindle type
Stroke
Stock: 18
Product number: 3130.14-V01E589H525
Weight: 0.8 kg
Product information "Spindle unit with motoradapter 3130.14"

Installation dimension 589 l Stroke 525 l Lifting force 900 N l Travel 20mm/rev l With and without motor mounting l Travel speed 40mm/s l


Universally applicable lifting unit with a bevel gear head for linear drive solutions. Possible applications are height adjustable tables, various adjustment functions for furniture items as well as all manner of linear adjustment in residential, mobile home or industrial fields.


Special features
  • Ideal for the drives: 3112.00/ 3133.00 / 3133.48 / 3130.00
  • Available in customized spindle lengths
  • Simple mounting
  • Connection to the drive hex 9 mm

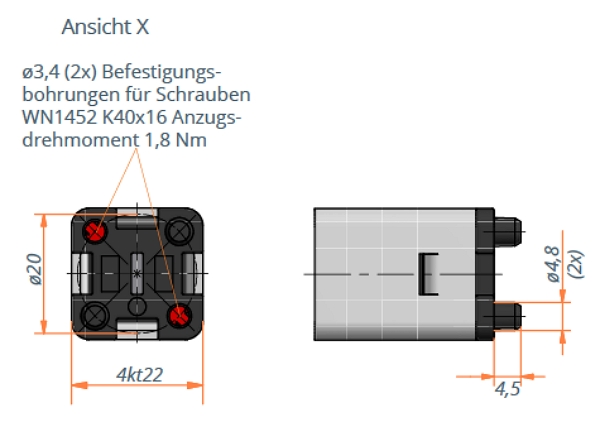

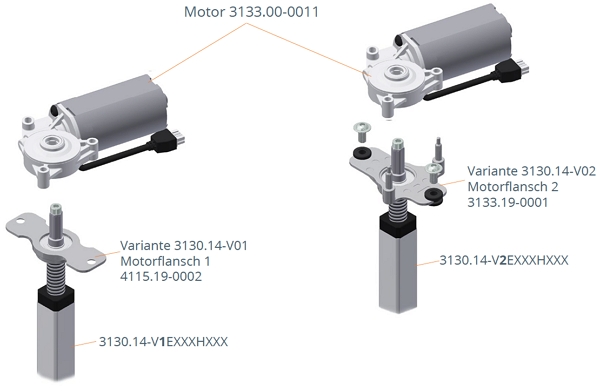

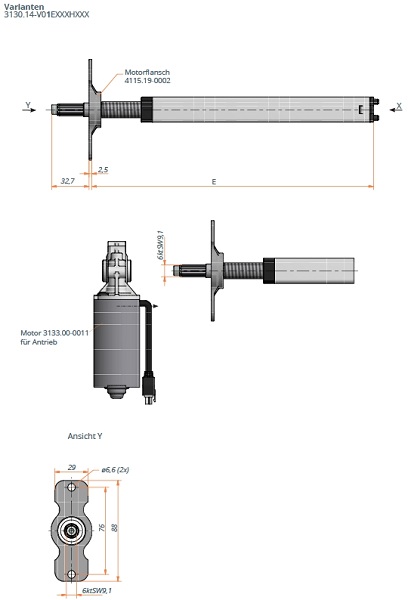

Model 3130.14-V01EXXXHXXX
3130.14-V02EXXXHXXX
Type of spindle SG14x20P4 RH
Travel path 20 mm/rotation
Traverse speed* 40 mm/s*
Max. stroke retracted length -64 mm
Max. lifting force 900 N
Required drive torque 3,5 Nm

* In combination with motor 3133 and LogicData control box Compact-3

Technical notes

  • The lifting units must be protected against lateral forces by a separate guide system.
  • Attention: The spindle systems with a spindle pitch > 3mm may not be self-locking. Check the self-locking effect in the application.
  • The lifting unit is only pressure loadable.
  • Incorrect dimensioning of the guide system can damage the lifting unit: Please note the design and safety instructions for spindle drives. You will find them at: https://www.ketterer.de/en/downloads/instructions
